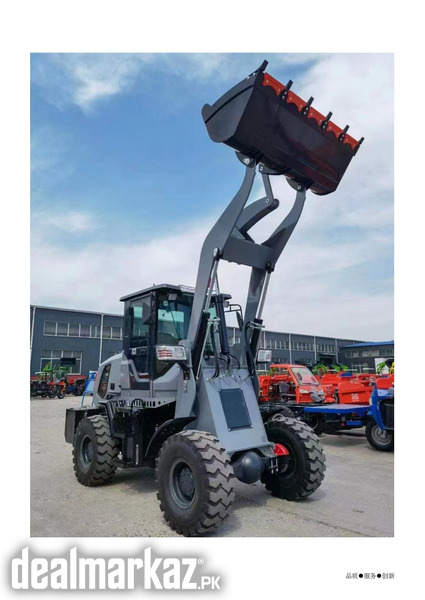

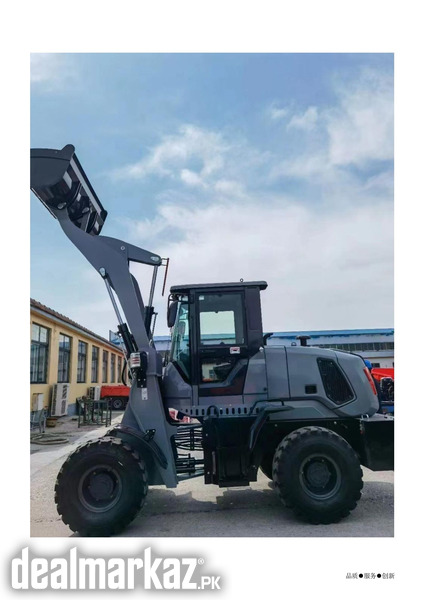

Wheel Loader ZM938 Vehicle parameters Technical parameters Maximum lifting Weight: 1800kg Size 5500*1780*2650mmLong 2650mm Wide 1780mmHigh 5500mm Operating weight 1800kg Lifting height 4320mm Bucket width 1900mm Minimum turning radius: 5000mm System Traveling motor Huichai 490 turbocharged Power 36KW, National II emission standard Transmission 280 dual high-speed torque converter Axle small wheel to steambrake axle Tires 20.5 large tires System Battery Maintenance-free 60 battery, 24VRubber hose H-head double-layer steel wire rubber hose Braking method steam brake (disc brake) Shift mode> continuously variable transmission, dual highand lowspeed S-1, 24-C, Sunset Lane No.1, Phase 2 (ext) DHA, Karachi, Dha, Karachi, Sindh, Pakistan
