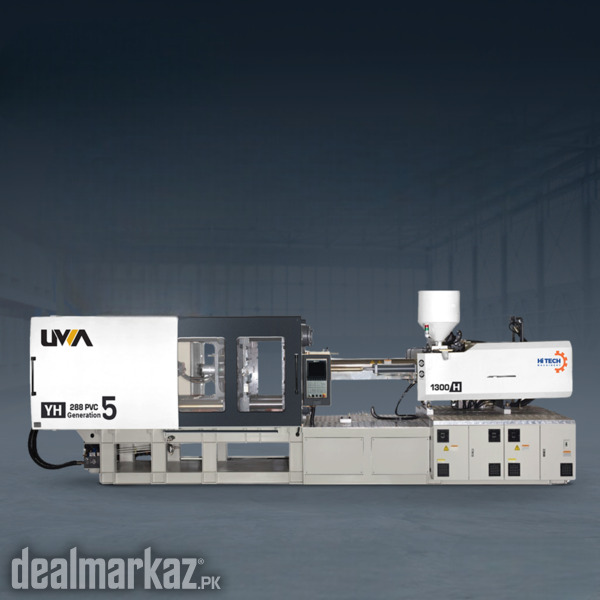

UWA YH5 288 PVC Injection Molding Machine

The UWA YH5-288 PVC is a specialized injection molding machine engineered for processing rigid PVC materials used in pipe fittings and construction applications. It features a 288-ton clamping unit designed to ensure stable molding performance for heat-sensitive PVC production. Technical Specifications • Clamping Force: 2880 kN (288 Tons) • Screw Diameter Options: 55 / 60 / 64 mm • Shot Weight (PVC/PS): 583 / 694 / 790 g • Space Between Tie Bars: 610 × 580 mm • Max Mold Opening Stroke: 550 mm • Mold Height (Max/Min): 580 / 220 mm • System Pressure: 17.5 MPa • Ejection Stroke: 155 mm Machine Features • PVC-dedicated screw and barrel design to reduce material degradation during processing. • Barrel air-cooling system for controlled temperature management of PVC resin. • High-torque drive configuration suitable for rigid PVC applications. • Servo motor system supporting energy-efficient machine operation. • Linear guide rail injection structure for improved stability and accuracy. • Self-lubricating sleeves designed for long service life and reduced maintenance Ware House #1 Machinery Market, Sharif Garden, St. #1, Opposite Attock Petrol Pump GT. Road, Salamat, Lahore, Lahore, Punjab, Pakistan
