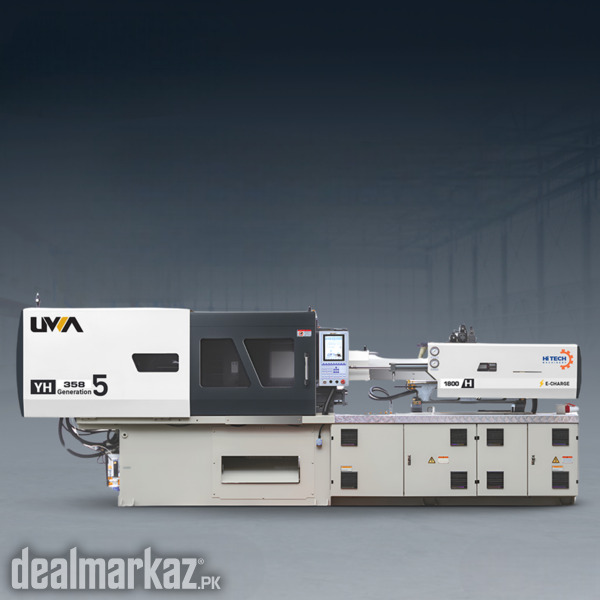

UWA YH-II-358/1800H PC Servo Injection Molding Machine

The UWA YH-II-358/1800 PC is a high-performance servo-hydraulic injection molding machine designed for Polycarbonate (PC) applications, featuring a 358-ton clamping force and a 1800H injection unit for precise high-pressure molding. Technical Specifications • Clamping Force: 3580 kN (358 Tons) • Screw Diameter Options: 60 / 65 / 70 mm • Shot Weight (PS): 1058 / 1241 / 1440 g • Ejector Force: 124 kN • Theoretical Shot Volume: 1159 / 1360 / 1577 cc • Injection Pressure: 204 / 174 / 150 MPa • Screw L/D Ratio: 22.8 / 21 / 19.5 • Space Between Tie Bars: 730 × 680 mm • Platen Dimensions: 1050 × 1000 mm • Max Mold Opening Stroke: 660 mm • Mold Height (Max/Min): 700 / 250 mm • Ejector Stroke: 200 mm Machine Features • PC-specialized screw and barrel for high-viscosity, high-temperature resin processing. • Balanced double-cylinder injection for stable movement and precise shot control. • High-rigidity box-type platen to minimize deflection under high clamping forces. • Double servo drive system offering high response and energy savings up to 70%. • High injection pressure suitable for deep-cavity or thin-wall PC parts. • Efficient heating and oil capacity tailored for consistent production quality. Ware House #1 Machinery Market, Sharif Garden, St. #1, Opposite Attock Petrol Pump GT. Road, Salamat, Lahore, Lahore, Punjab, Pakistan
