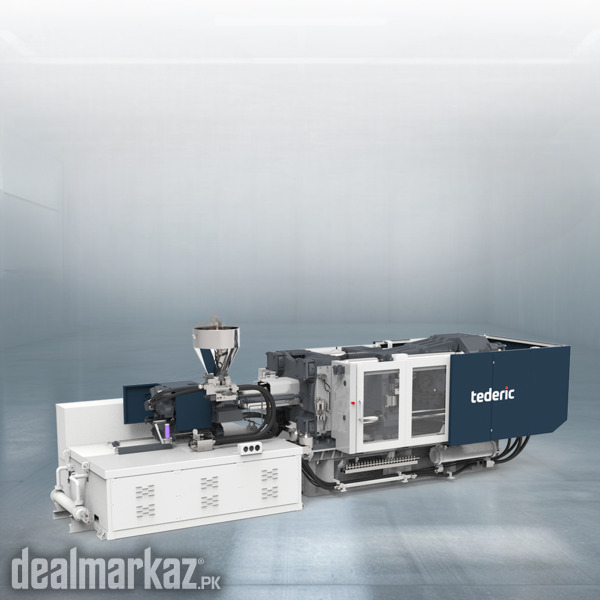

Tedric NEO T490-fi1550 High-Speed Series Injection Molding Machine

The Tederic NEO·T490-fi1550 is a 490-ton high-speed servo-hydraulic injection molding machine designed for thin-wall packaging and fast-cycle production using a specialized fast-injection unit. Technical Specifications Clamping Force: 490 Tons (4900 kN) ● Oil Tank Capacity: 850 L Injection Unit: fi1550 High-Speed (Fast Injection) Screw Diameter: 55 / 60 / 65 mm ● Shot Weight (PS): 552 – 771 g Injection Pressure: 165 – 231 MPa ● Injection Speed: 300+ mm/s Tie Bar Spacing: 830 × 830 mm ● Platen Size: 1180 × 1180 mm Clamping Stroke: 780 mm ● Mold Height: 300 – 850 mm Ejector Stroke / Force: 200 mm / 110 kN Pump Motor Power: 75 – 90 kW ● Heating Power: 28 – 35 kW Machine Features Fast Injection System — Accumulator-assisted injection for ultra-high speed molding cycles High-Speed Production — Ideal for thin-wall packaging and rapid manufacturing Servo-Hydraulic Drive — Energy saving with precise motion and pressure control Parallel Movements — Simultaneous mold motion and plasticizing reduce cycle time Reinforced Toggle Structure — High rigidity for stable high-pressure operation Advanced Touch Controller — 15-inch control system with ultra-fast response Ware House #1 Machinery Market, Sharif Garden, St. #1, Opposite Attock Petrol Pump GT. Road, Salamat, Lahore, Lahore, Punjab, Pakistan
