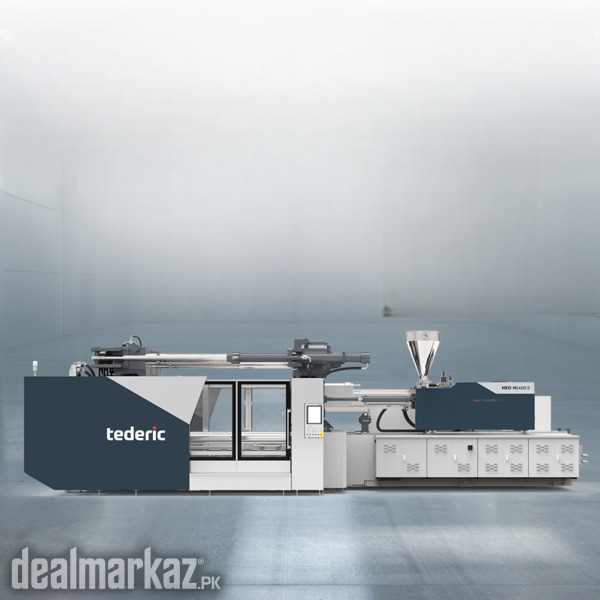

Tedric NEO HII.550 – i3800 Two Platen Series Injection Molding Machine

The Tederic NEO·HII 550-i3800 is a high-precision two-platen servo-hydraulic injection molding machine designed for large molds and deep-cavity applications. Technical Specifications Clamping Force: 550 Tons (5500 kN) Machine Type: Two-Platen Servo-Hydraulic Injection Unit: i3800 ● Screw Diameter: 65 / 70 / 75 mm Shot Weight (PS): 935 – 1245 g ● Injection Pressure: 168 – 224 MPa Tie Bar Spacing: 930 × 830 mm ● Opening Stroke: 1150 mm Mold Height: 350 – 1100 mm ● Ejector Stroke / Force: 250 mm / 160 kN Drive System: High-Response Servo Hydraulic Control System: KEBA 15-inch Touch Screen Machine Features Two-Platen Structure — Compact design saves floor space while supporting large molds Non-Contact Tie Bars — Reduced friction and cleaner operation environment High-Precision Clamping — Four hydraulic cylinders ensure uniform mold pressure Linear Guide Support — Improves platen parallelism and mold protection Energy-Efficient Servo System — Stable performance with reduced power consumption Large Opening Stroke — Ideal for deep-cavity and automotive components Ware House #1 Machinery Market, Sharif Garden, St. #1, Opposite Attock Petrol Pump GT. Road, Salamat, Lahore, Lahore, Punjab, Pakistan
