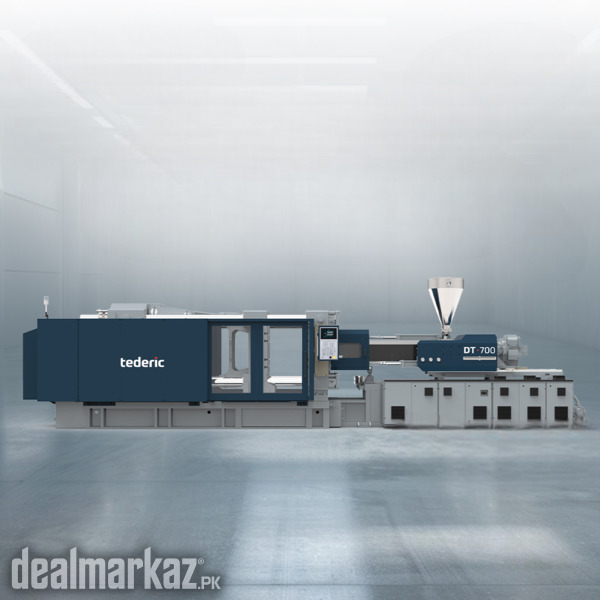

Tedric DT.700 – i5800 Injection Molding Machine

The Tederic DT 700-i5800 is a heavy-duty servo-hydraulic toggle injection molding machine designed for large industrial components requiring high shot capacity and stable clamping performance. Technical Specifications Clamping Force: 700 Tons (7000 kN) Machine Type: Servo-Hydraulic Toggle Injection Unit: i5800 ● Screw Diameter: 85 / 90 / 100 mm Shot Weight (PS): 2442 – 3381 g ● Injection Pressure: 168 – 224 MPa Tie Bar Spacing: 960 × 960 mm ● Opening Stroke: 980 mm Mold Height: 400 – 980 mm ● Ejector Stroke: 260 mm Drive System: Energy-Saving Servo Hydraulic Control System: 15-inch Professional Touch Screen Machine Features Five-Point Toggle System — Ensures uniform clamping force and reduced platen deformation Box-Type Platen Design — High rigidity structure for heavy mold applications Linear Guide Injection Unit — Improves positioning accuracy and reduces friction Energy-Efficient Servo Drive — Saves power while maintaining stable performance High-Speed Response Control — Fast pressure build-up for consistent molding cycles Large Mold Capacity — Suitable for automotive, packaging, and construction parts Ware House #1 Machinery Market, Sharif Garden, St. #1, Opposite Attock Petrol Pump GT. Road, Salamat, Lahore, Lahore, Punjab, Pakistan
