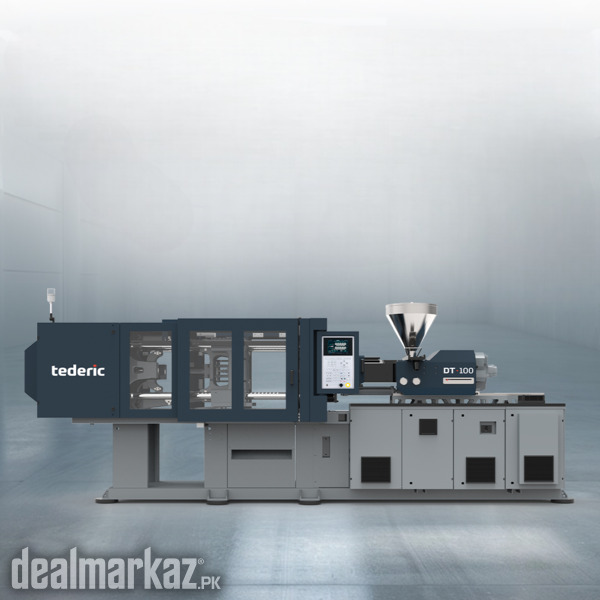

Tedric DT 100-i380 100T Injection Molding Machine

Servo-driven 100-ton injection molding machine with i380 injection unit, 35–42 mm screws, ideal for precision plastic parts production. Technical Specifications: Clamping Force: 100 Tons / 1000 kN Tie Bar Space: 360 × 360 mm Clamping / Ejector Stroke: 360 mm Max - Min Mold Height: 380 mm - 150 mm Screw Diameter : 35 - 38 - 42 mm (A/B/C) Injection Weight: 153 - 181 - 221 g Injection Pressure: 158 - 193 - 228 MPa Pump Motor / Heating: 13–16 kW / 6.6–8.2 kW Oil Tank / Max Pressure: 120 - 150 L / 17.5 MPa Machine Features: V-Shaped Five-Point Toggle – Heavy-duty, reduces deflection High Rigidity Platens – T-slot mold mounting, reduces stress Fast Response – Servo reaches max pressure in 28 ms External Bearing / Toggle Lubrication – Ensures stable long-term operation Energy Efficient – Servo-hydraulic system saves 30–80% energy Industrial Use – Precision molding for plastic parts Ware House #1 Machinery Market, Sharif Garden, St. #1, Opposite Attock Petrol Pump GT. Road, Salamat, Lahore, Lahore, Punjab, Pakistan
