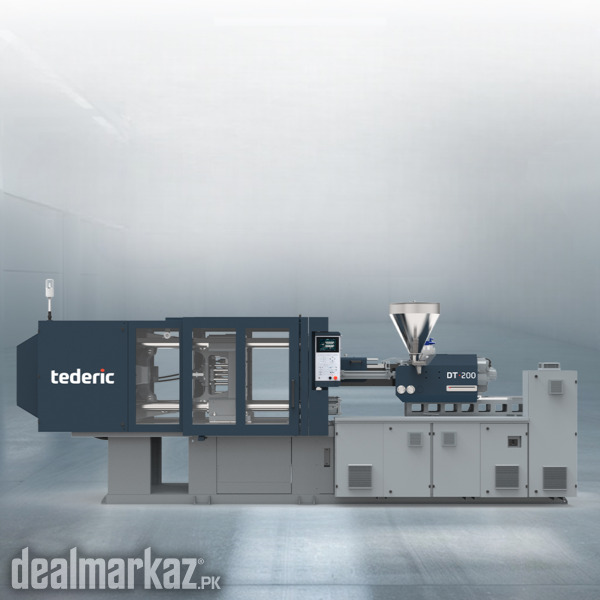

Tedric D200-1500T PET Series Injection Molding Machine

Tederic D200-i1500 PET is a 200-ton servo-hydraulic injection molding machine designed for high-output PET preform production, featuring a large-capacity injection unit and PET-optimized screw system for stable and efficient manufacturing. Technical Specifications: Clamping Force: 200 Tons (2000 kN) Tie Bar Spacing: 530 × 530 mm ● Platen Size: 800 × 800 mm Clamping Stroke: 540 mm ● Mold Height: 220 – 560 mm Ejector Stroke / Force: 150 mm / 67 kN Screw Diameter: 50 / 55 / 60 mm ● Shot Weight (PET): 536 – 773 g Injection Pressure: 156 – 224 MPa ● Pump Motor Power: 25 – 30 kW Screw L/D Ratio: 20:1 – 24:1 (PET Special) Heating Power: 15.6 – 19 kW ● Oil Tank Capacity: 350 L Machine Weight: Approx. 7.1 – 7.5 Tons Machine Features: PET Special Screw – Low-shear plasticizing for high transparency preforms Servo-Hydraulic Drive – Energy saving with stable pressure control High Injection Capacity – Suitable for multi-cavity PET molds Parallel Operation – Charging and mold movement run simultaneously High Torque Plasticizing Motor – Handles dense PET material efficiently Smart Touch Controller – Fast response with precise production control Ware House #1 Machinery Market, Sharif Garden, St. #1, Opposite Attock Petrol Pump GT. Road, Salamat, Lahore, Lahore, Punjab, Pakistan
