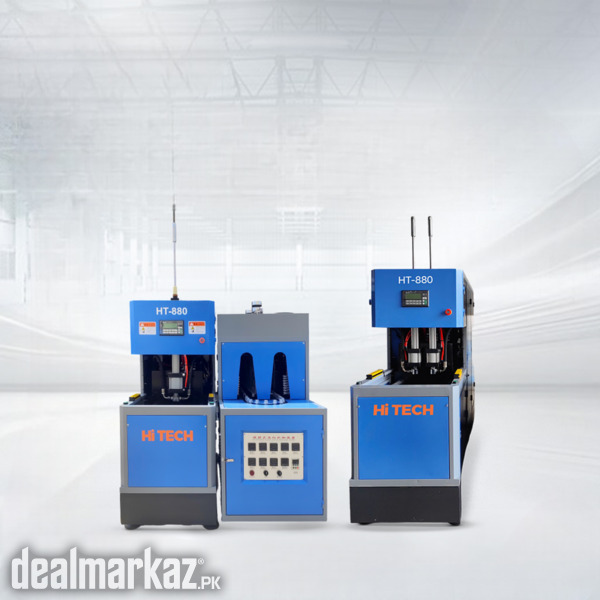

SEMI AUTOMATIC HT880 PET BLOW MOLDING MACHINE

The HT-880 is a semi-automatic two-stage stretch blow molding machine designed for efficient production of PET bottles and containers up to 2 liters. It combines a separate infrared preheating oven with a stable blowing unit, making it suitable for small to medium-scale bottle manufacturing operations. Technical Specifications • Production Capacity: 800 – 1000 bottles/hour (500 ml) • Max Bottle Volume: 6 Liters • Max Bottle Diameter / Height: 100 mm / 350 mm • Mold Cavities: 2 cavities • Clamping Force: 120 kN • Mold Opening Stroke: 160 mm • Heating System: Infrared rotary preheating oven • Heating Power Consumption: approx. 12 – 16 kW • Blowing Pressure: 2.0 – 3.0 MPa • Power Supply: 3-Phase, 380V/220V, 50/60 Hz Machine Features • Semi-automatic PET bottle production system • Separate preheating oven for uniform preform heating • Stable and energy-efficient operation • Easy operation and maintenance • Suitable for water, beverage, and PET container manufacturing Ware House #1 Machinery Market, Sharif Garden, St. #1, Opposite Attock Petrol Pump GT. Road, Salamat, Lahore, Lahore, Punjab, Pakistan
